ENGR 22: Engineering Design Graphics

Lab 6: Solid Modeling 1

Due 3/13/24, 11:59 pm

PDF Here

ENGR22_Lab06_SolidModeling1.pdf

3D Printing Hearts: https://docs.google.com/presentation/d/1xNiIruu8ymlTdXIRMGtvpU3CbC49smM-tvCTNSrpLkg/edit?usp=sharing

This lab will make use sketching tools such as construction lines and geometric constraints. It will also employ feature tools, such as Revolve, Fillet, Extrude, Work Axis, and Work Plane. Note: Read all instructions before beginning, you might miss some hints if you dive in before reading.

Part A

  1. First read the steps below, then create the Rubber Handle Sleeve part for a Button Maker:

  2. Determine the missing dimensions in Figure 2 below, and write the appropriate values in the boxes. Use Figure 1 as a reference.

    https://lh7-us.googleusercontent.com/EWGLmfx_coSRFELlIIYwGHLl4yQYUeAFkzgjYj6S9xqjmw7VMPWT8cPQOze-68TQgEe-P_lo8_bxgTbpb_5lSqLbAmGX5oVOR-rVc3ypdU3yuQ19n98oyTgtVoNPP28wf38lbMM9JfdkuqUcwWlaaw

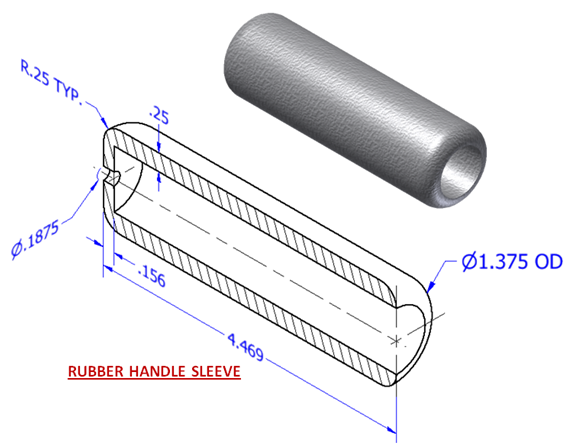

Figure 1: Select dimensions of the Rubber Handle Sleeve

https://lh7-us.googleusercontent.com/hxg1LxnQxihmNu2sZTZYcMQKH9_1Lvuh96Ae7eSgcDGne5_coqdyb1rcusmreLVfkGHNeYsbbEo84iiFKKj0AvlwIbSltfK0-eVlVoqw0AawhQcM8RmywY3bChxT45ikl0iEOccEBocrgzeE5dgcCA

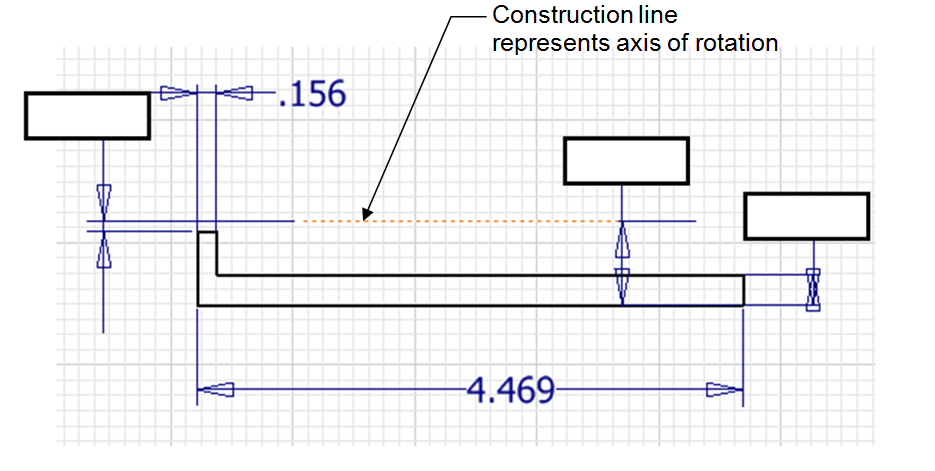

Figure 2: Complete the missing dimensions in the half-section view

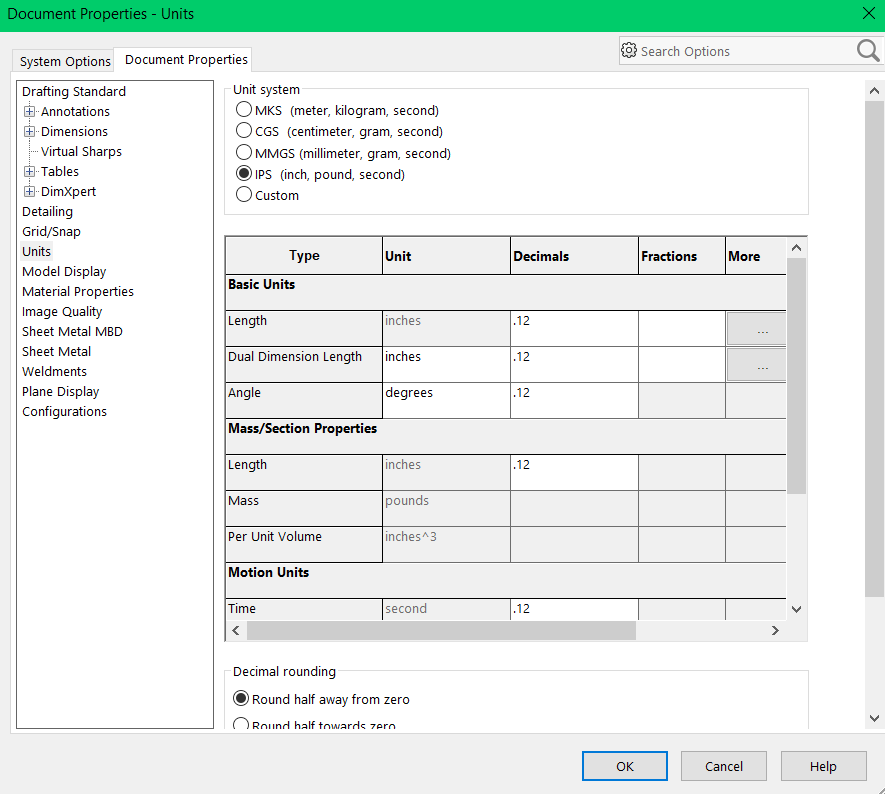

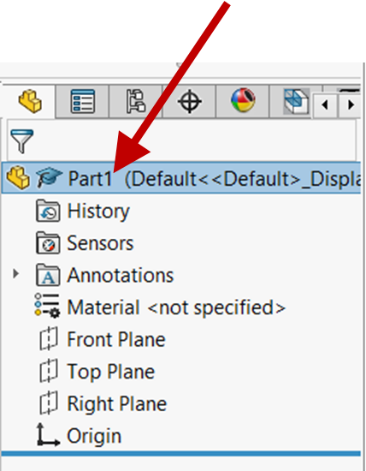

  1. Start a new part. Change the units to inches by right-clicking on Part1 in the FeatureManager Design Tree, select Document Properties. Click on Units in the left-hand menu, then change to IPS (inch, pound, second). Click “OK” to finish.

https://lh7-us.googleusercontent.com/itce6CoDmn6DPF2jfnGIgSML8O1FYBD1CTvxDf9ugOGtB-AI6Uoz5sb7q7cJUN1rHIXAcoTkffkdwqLcm_nwmF3TxuOLlWdcowLLWLSaEbIpgsgp-THgOSszwTEXltFlBXlDKkWNoyA7Ch92wlZMSA

https://lh7-us.googleusercontent.com/UcDMwbTH_txvp-ZcFsT3JFyxmz3MYXnbEYo0RsXVgsWaa7zIOwPuia_V-Mmw635utajeAsF9VCLHiD0yoA1ZgufVvv-h3tU-zTNUcMYlLCKm3v4AmWjO3adrgfd4Ydacu9trZ0Ufri1ATULMDVvV1A

Figure 3: Changing units

  1. Create a sketch according to the dimensioned drawing in Figure 2. Include a construction line to represent the axis of revolution at the center of the part. Note that you may change an object line to a construction line by clicking “For construction” in the options segment under Line Properties. Exit sketch when finished.

  2. Revolve the sketch a full 360 degrees: Click on the Features menu, then click “Revolved Boss/Base” as circled below. Select your sketch to revolve, and be sure the construction line is selected as the axis of rotation. If the preview looks acceptable, click the green check mark.

    https://lh7-us.googleusercontent.com/DviUSZZg2ngUw5bimO4iOjtEcFA_iPQF1vbBfLBgFcKwanXv3b2s7aoAiABngjPl_Z6bHMclMjHwk4-0feJFZ8FNCxhFWNYwWP7cDMZwB2DsQIeny3rnmGPXERprKrN3qOu0MWWc5IEP_kKUoxvorQ

Figure 4: Revolve menu and preview

  1. Check that there is a large hole on one end of the handle, and a small hole on the other. If you do not have the small hole on one end, you must select a different location for the axis of rotation or double check your dimensions from Step 1.
